PRODUCT SUMMARY
The AIREX TITAN OUTLET™ is an engineered wall enclosure system that seals and protects HVACR piping penetrations from weather damage, air leakage, pipe vibration, and pests to help HVACR professionals aesthetically meet mandatory building requirements and energy efficiency standards. Utilizing weather resistant and outdoor durable engineered polymers, the AIREX TITAN OUTLET™ enclosure is made of ASA polymer, while the elastomeric outlet sleeve is made of an engineered TPE polymer for airtight sealing around HVAC piping. The enclosure and sleeve are bonded together through a process called over-molding, chemically and mechanically bonding them together as one piece. The wall surface gasket attached to the outlet enclosure is durable PVC foam that creates a positive seal on irregular surfaces. Included accessories consist of 4 carbon steel anchor screws and one stainless-steel clamp to ensure outdoor installation durability. Utilize the AIREX TITAN OUTLET™ to aesthetically meet mandatory building requirements and energy efficiency standards.
SEALS OUTDOOR PIPE PENETRATIONS!
- Improves HVACR equipment performance by protecting from weather and physical damage.
- Creates highest quality positive gasket seal, protecting from weather, eliminating rodent and pest intrusion, ending wall air leakage, reducing moisture damage to walls, increasing overall energy efficiency, and improving indoor air quality.
- With a sleek architectural finish, it improves the aesthetics of HVACR, plumbing, conduit, and other outdoor piping penetrations. • Superior quality and excellent heat/chemical resistant materials and integral over-molded flexible elastomeric sleeve design ensures long-lasting durability.
- • Meets mandatory building, energy, residential, mechanical, and green codes • Made in the USA
- Engineered design supports HVAC systems with wall isolation & anti-vibration features • Includes corrosion resistant hose clamp, anchor screws with elastomeric washers and lubricant for a long-lasting installation.
- Available in standard 3/16” gasket, as well as thicker 3/4” gasket ideal for uneven wall surfaces like lap siding or rugged masonry.
FULL CODE COMPLIANCE INSTALLATION
- Outlet Body, Outlet Sleeve made of Superior Outdoor Resistant Materials.
- Retrofit Design Allows Outlet to be Removable and Reusable for Maintenance.
- Includes Corrosion Resistant Hose Clamp, Anchor Screws with Gasket Washers and Lubricant for a Long-lasting Installation.
APPROVED PERFORMANCE TESTING
ASTM E283 Air Leakage
UL 746C Outdoor Stability-F1 Rating
ASTM E331 Water Penetration
ASTM E2178 Air Permeability
APPROVED
MATERIAL TESTING
ASTM D1525C-09 Temperature Deformation
ASTM D648-07 Temperature Load Deformation
UL 94 HB Flammability
ASTM D573-04 Deterioration
ASTM D746-07 Brittleness Temperature
CODES & STANDARDS COMPLIANCE
2012, 2015, 2018, 2021 INTERNATIONAL ENERGY CONSERVATION CODE (IECC)
Commercial
• Air Leakage (Mandatory) – C402.4 & C402.4.2 (2012); C402.5 & C402.5.1.1(3) (2015, 2018)
• Air Barrier Penetration (2018) – C402.5.1.1
• Penetrations of the air barrier shall be caulked, gasketed or otherwise sealed. Sealing shall allow for expansion and contraction of materials and mechanical vibration
Residential
• Air Leakage (Mandatory) Section R402.4.1, R402.4.1.1, R402.4.1.2 (2012, 2015); R402.4, R402.4.1.1, R402.4.1.2 (2018) Building Thermal Envelope – Penetrations
2016, 2018, 2021 UNIFORM MECHANICAL CODE (UMC) CHAPTER 11 REFRIGERATION
• Scope 1101.0; General 1106.0; Support 1106.2; Piping Vibration & Strain 1111.1; Support 1111.2, piping and tubing shall be securely fastened to a permanent support within six (6) feet from the compressor; Visual Inspection 1111.4
2016, 2019, 2022 CALIFORNIA BUILDING ENERGY EFFICIENCY STANDARDS (TITLE 24 ENERGY CODE)
2016, 2018, 2021 UNIFORM MECHANICAL CODE (UMC)
2012, 2015, 2018, 2021 INTERNATIONAL MECHANICAL CODE (IMC) CHAPTER 3
2012, 2015, 2018, 2021 INTERNATIONAL BUILDING CODE (IBC) APPENDIX F
2012, 2015, 2018, 2021 INTERNATIONAL RESIDENTIAL CODE (IRC) CHAPTER 11 PART IV ENERGY EFFICIENCY

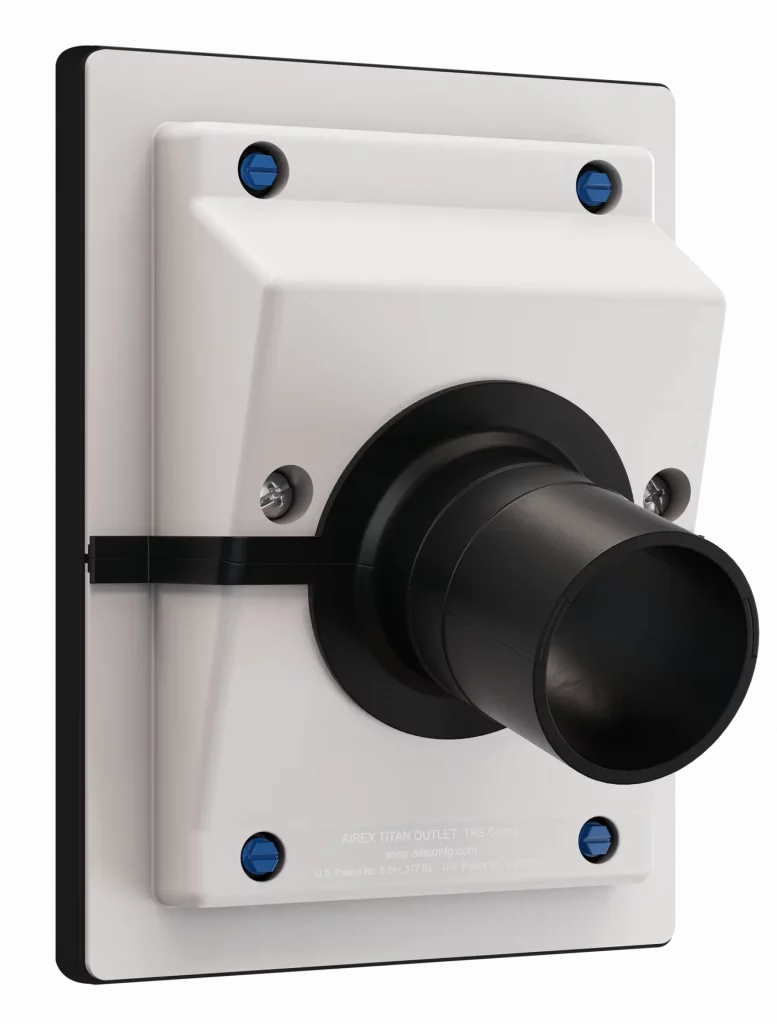

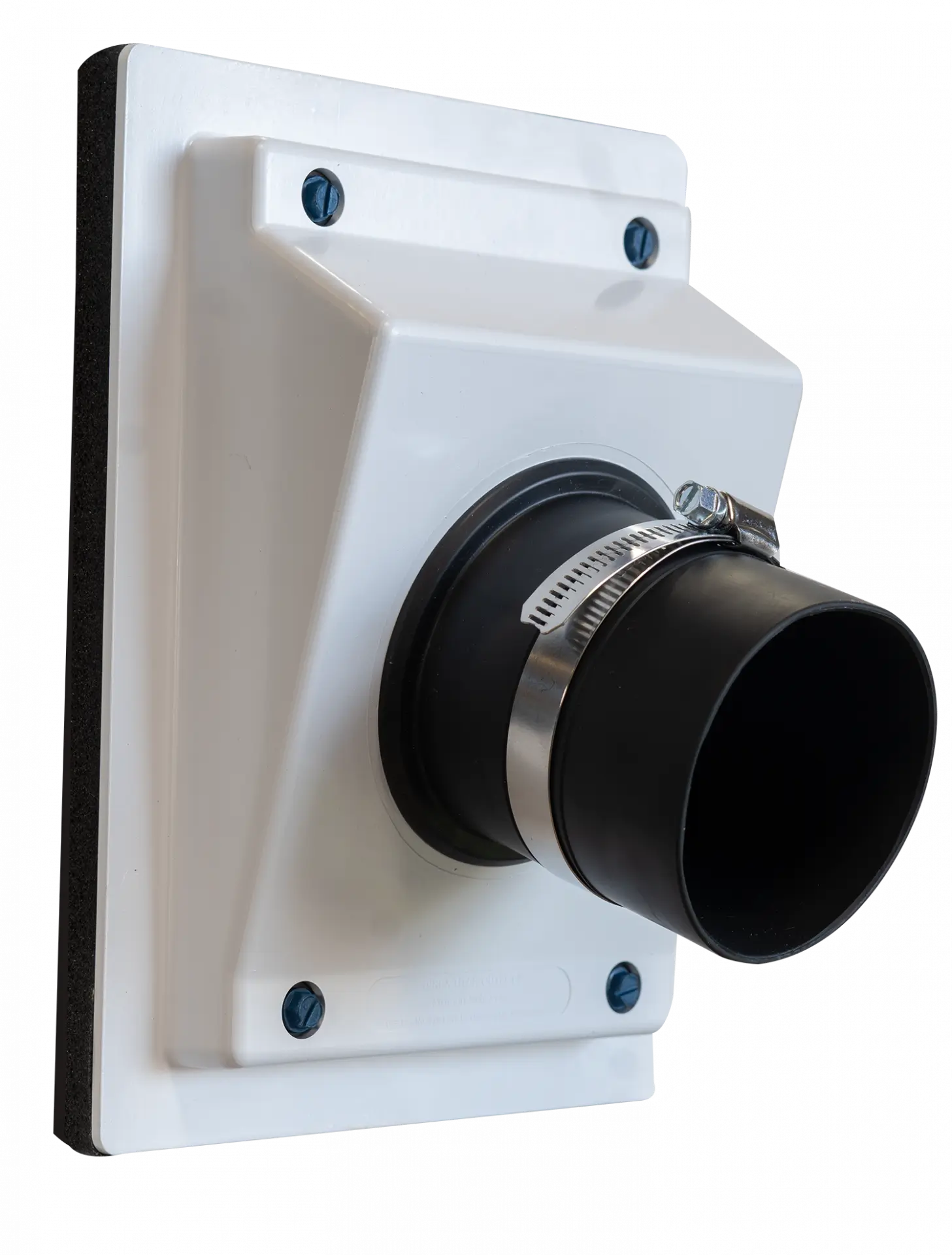

TGS Series
| Model # | Color | Product Description |
|---|---|---|
| TGS-550-G | Gray | AIREX TITAN OUTLET Fits: 1/2" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube |
| TGS-575-G | Gray | AIREX TITAN OUTLET Fits: 3/4" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube or 1/2" wall thickness pipe insulation with 1-1/8" tube |
| TGS-510-G | Gray | AIREX TITAN OUTLET Fits: 1" wall thickness pipe insulation with 3/4", 7/8" or 1-1/8" tube or 3/4" wall thickness pipe insulation with 1-1/8" tube |
| TGS-550-W | White | AIREX TITAN OUTLET Fits: 1/2" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube |
| TGS-575-W | White | AIREX TITAN OUTLET Fits: 3/4" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube or 1/2" wall thickness pipe insulation with 1-1/8" tube |
| TGS-510-W | White | AIREX TITAN OUTLET Fits: 1" wall thickness pipe insulation with 3/4", 7/8" or 1-1/8" tube or 3/4" wall thickness pipe insulation with 1-1/8" tube |
TRS Series
| Model # | Color | Product Description |
|---|---|---|
| TRS-550-G | Gray | AIREX TITAN RETROFIT OUTLET Fits: 1/2" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube |
| TRS-575-G | Gray | AIREX TITAN RETROFIT OUTLET Fits: 3/4" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube or 1/2" wall thickness pipe insulation with 1-1/8" tube |
| TRS-510-G | Gray | AIREX TITAN RETROFIT OUTLET Fits: 1" wall thickness pipe insulation with 3/4", 7/8" or 1-1/8" tube or 3/4" wall thickness pipe insulation with 1-1/8" tube |
| TRS-550-W | White | AIREX TITAN RETROFIT OUTLET Fits: 1/2" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube |
| TRS-575-W | White | AIREX TITAN RETROFIT OUTLET Fits: 3/4" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube or 1/2" wall thickness pipe insulation with 1-1/8" tube |
| TRS-510-W | White | AIREX TITAN RETROFIT OUTLET Fits: 1" wall thickness pipe insulation with 3/4", 7/8" or 1-1/8" tube or 3/4" wall thickness pipe insulation with 1-1/8" tube |
TSS Series
| Model # | Color | Product Description |
|---|---|---|
| TSS-550-G | Gray | AIREX TITAN OUTLET Fits: 1/2" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube (for siding) |
| TSS-575-G | Gray | AIREX TITAN OUTLET Fits: 3/4" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube or 1/2" wall thickness pipe insulation with 1-1/8" tube (for siding) |
| TSS-550-W | White | AIREX TITAN OUTLET Fits: 1/2" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube (for siding) |
| TSS-575-W | White | AIREX TITAN OUTLET Fits: 3/4" wall thickness pipe insulation with 5/8", 3/4", 7/8" tube or 1/2" wall thickness pipe insulation with 1-1/8" tube (for siding) |
